Binnable Item Standard Pick Times

Stored on pallets; Picked by Case

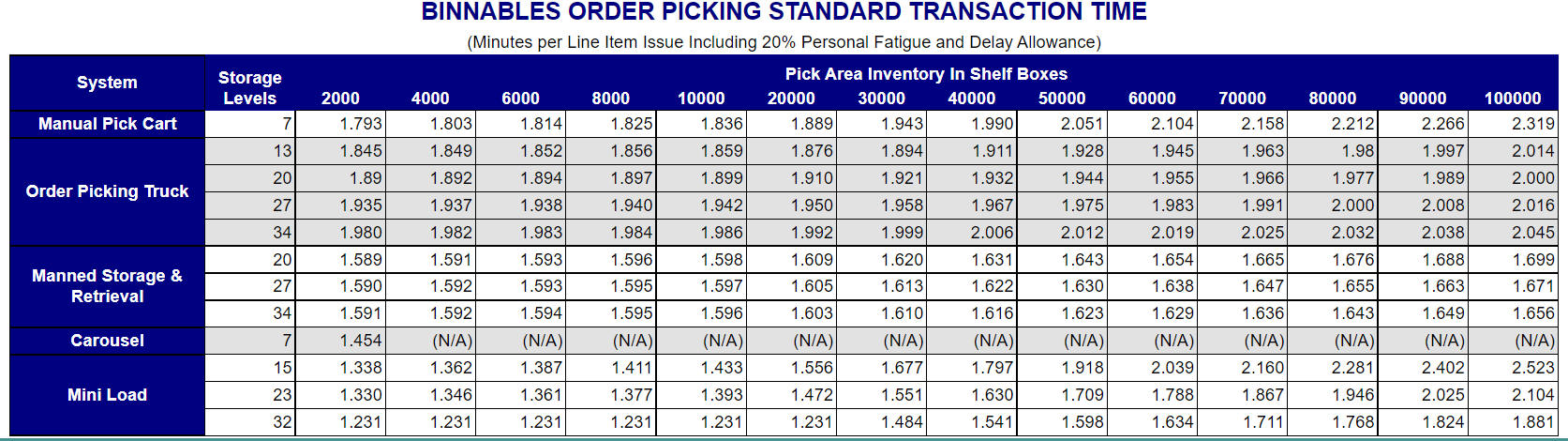

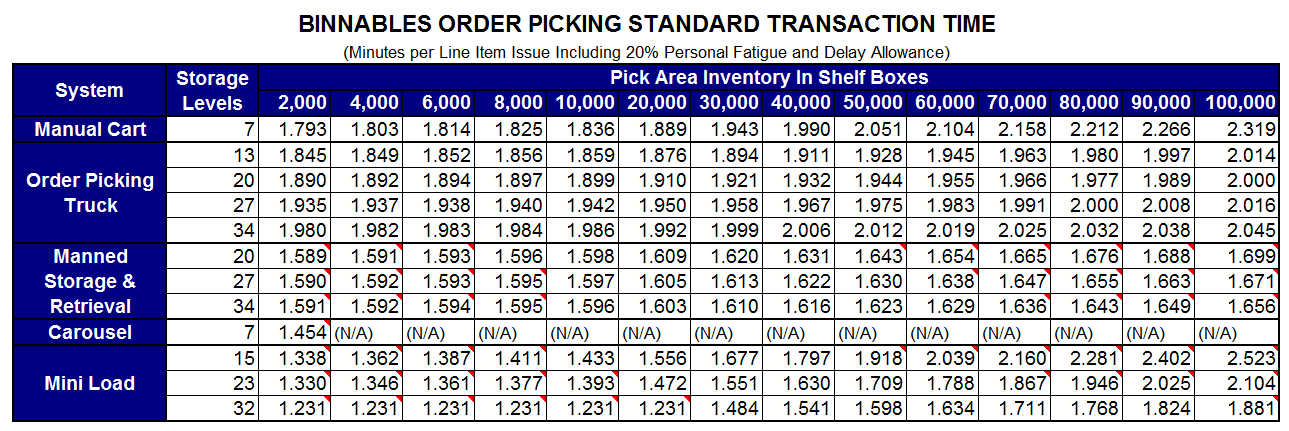

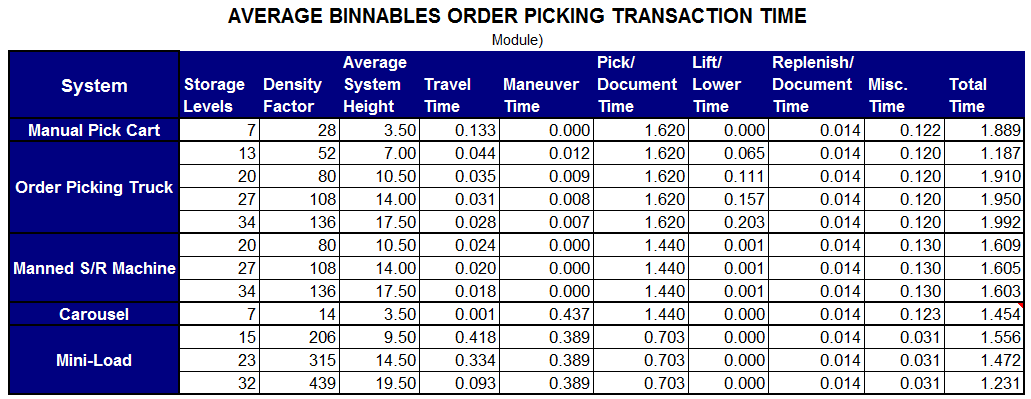

BinnablesWork times on this page are for warehouses or warehouse modules in which items or cases are stored in bins or boxes. They are picked individually. Table 1 shows times and components for a warehouse or module of 20000 bin boxes. For larger or smaller warehouses, table 2 extends the total time found in table 1.

Time values come from the Warehouse Modernization & Layout Planning Guide, NS529. They were derived using a pre-determined time system (probably MTM). They are reasonably accurate for the purposes specified.

The spreadsheets on these pages are available as a free download in xls format. Just click below...

Use For:
  • Staff Planning
  • Warehouse Design
  • Equipment Selection
  • General Benchmarking
  • Estimating Operating Cost
Do Not Use For:
  • Employee Performance Evaluation
  • Daily/Weekly Performance Evaluation
Pick Cart

Manual Picking Cart

storage/retrieval machine

Manned Storage & Retrieval Machine

Order Picking Truck

carousel

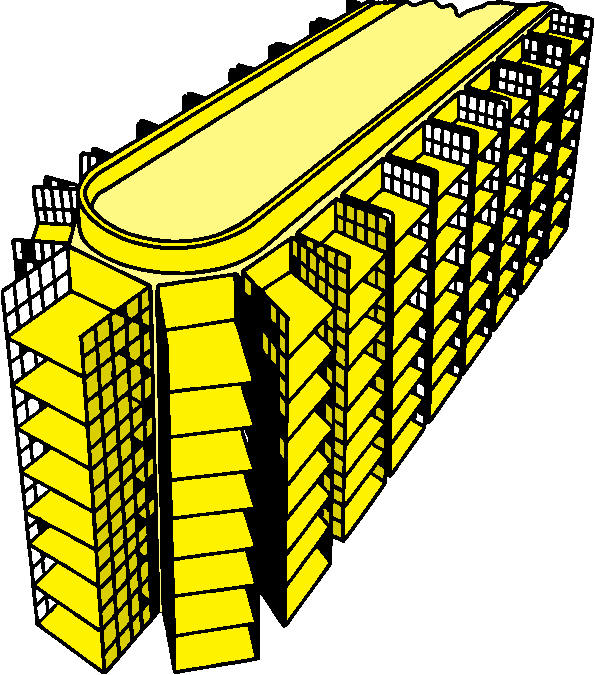

Carousel

Mini-Treve

Mini-Load/Mini-Treve System

(Click to Enlarge or Download xls File)
